Flat Pack Container House
Standard 20ft Flat Pack Container House
Minimum Order Quantity: 7 Units
Reference Price: $799 ~ $ 1260
Reference Shipping Cost: $1000 ~ $ 4000
STANDARD FPC-01 PARAMETER
| Product Specification | Standard Size：L5950mm×W3000mm×H2800mm | ||
| Parameter Indicators | Service Life:At least 30 years | ||
| Wind Resistance：0.50kN/㎡ | |||
| Sound Insulation Performance: Sound Insulation ≥20dB | |||
| Fire Resistance: Grade A | |||
| Waterproof Performance: Both Sides of the Beam Free Drainage | |||
| Seismic Performance: Grade 8 | |||
| Snow Load Capacity Of Roofing:0.6kn/㎡ | |||
| Ground Live Load：2.0kN/㎡ | |||
| Roof live load：1.0kN/㎡ | |||
| Use:Customizable for any occasion | |||
Customization Options
The standard size of our flat pack container house is W3000mm*L5950mm*H2800mm, you can change the size according to your need.
Custom select the color, material, and look of your home with our 3D drawing and rendering service, free of charge.
Steel Structure Beams (Standard: White)
– Available colors: grey, black, custom color
– 2.5mm electrolytic steel
EPS Wall Panel (Standard: White)
– Different solid colors are available
– Different finishes are available:
– Wooden color
– Marble color
– Different insulation materials are available(standard is EPS):
– Fireproof insulation
– Glass wool
– Rock wool
– Polyurethane
Roofing (Standard: steel roof tiles)
– 0.426mm Steel wave roof tiles
– two slop with triangular structure roof is available
Flooring (Standard: MGO Board)
– Composite wood floor
– Solid wood floor
– Cement floor
– Vinyl floor
– Glass fiber magnesium board
Ceiling (Standard: iron ceiling)
– 0.326mm iron ceiling
Give your home some flair by styling its accessories.
Doors (Standard: steel door)
– glass door, sliding door
– high-grade steel door
– double doors
Windows
– Mid-tier to luxury windows are available
Discuss the desired functionality of your home with us.
– electrical wiring lines
– electrical outlet and socket location
– lighting
– air-conditioning
– plumbing lines
Sturdy Galvanized Steel Frame Provides Protection Against Rust
-
High-strength structural design is resistant to 10-grade winds and 8-grade earthquakes
-
Electrostatic spraying, no paint loss in 10 years.
-
Roof live load: 1.0KN/㎡
-
Ground live load: 2.0KN/㎡
Sturdy Galvanized Steel Frame Provides Protection Against Rust
-

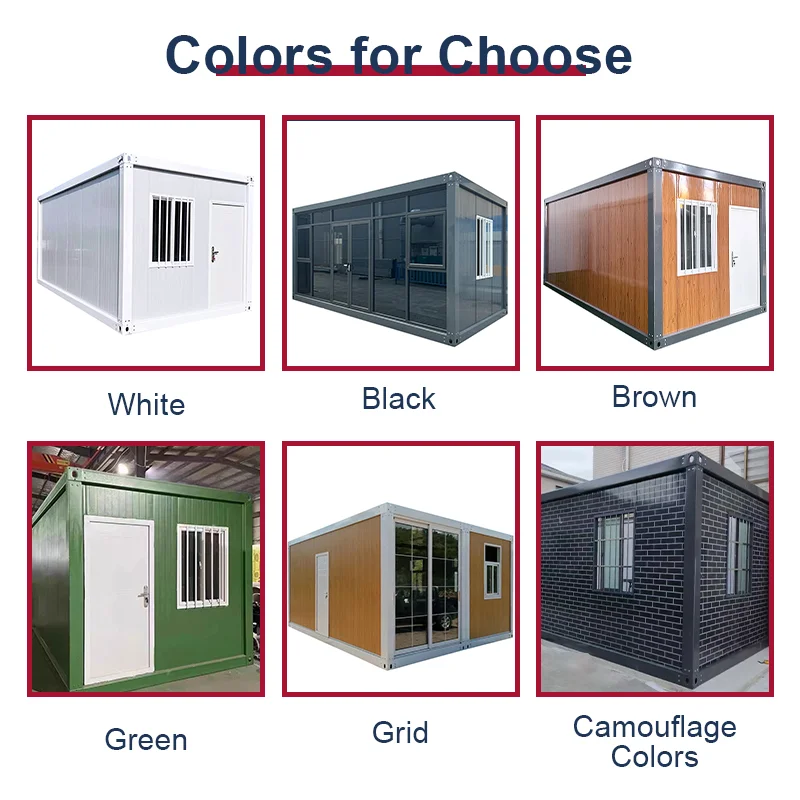

Pure color exterior wall, optional color card
-
Pure color wave exterior wall, optional color card
-
Patterned wall, optional color card
-
Carved metal panel, optional color card

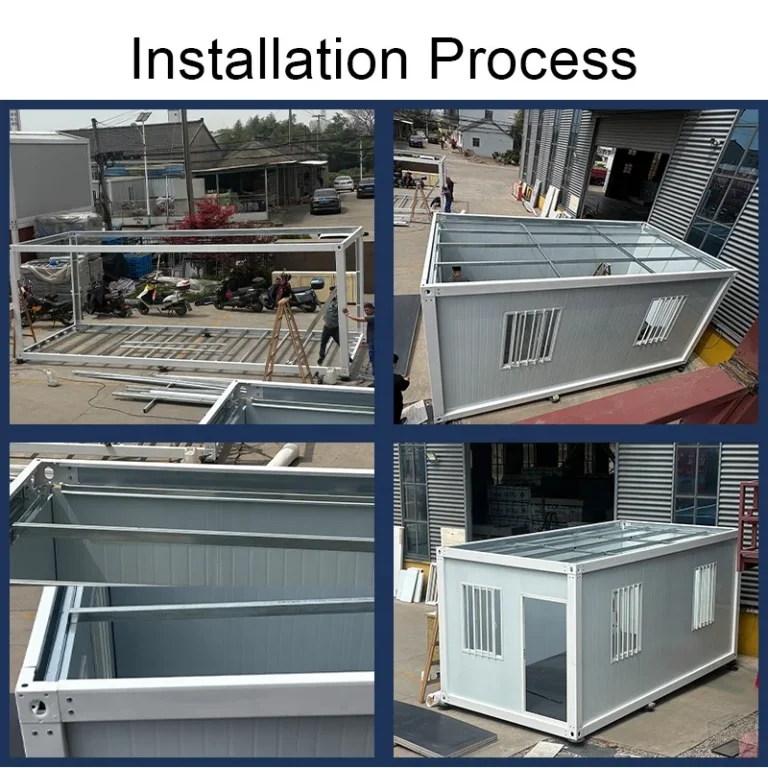

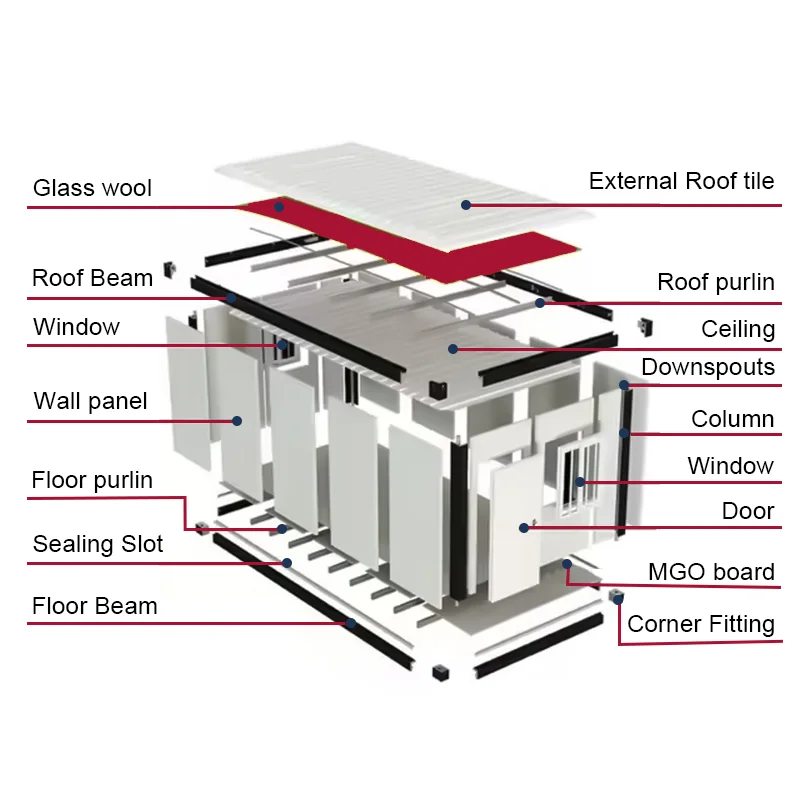

1、The frame of Flat pack container house is assembled from several independent standard modules by fast splicing with high-strength bolts and connectors. It can be freely combined into various shapes and layouts according to different spatial requirements, with high flexibility. The walls and roofs are made of various materials, including color steel plates, aluminum composite panels, fiber cement boards, etc., each of which has different characteristics and applicable scenarios;
2、It has the characteristics of quick disassembly and easy transportation. The standard size of the quick collocation box is usually 3m*6m*2.8m, which is widely used in construction sites as workers’ dormitories, and is also suitable for temporary housing, temporary offices, temporary warehouses, tourist attractions and Netflix hitting spots.
Large Stock to Ensure Smooth Supply
Flat Pack Container House Customised Cases
